Feeding Device With Good Quality Vacuum Convery For Roast Coffee

Ask Lasest Price
Brand Name :	EVERSUN MACHINERY
Model Number :	EVC-350
Certification :	ISO,CE
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	5000SETS/YEAR
Delivery Time :	within 15 work days

Add to Cart

Product Details
Company Profile

Feeding Device With Good Quality Vacuum Convery For Roast Coffee

Feeding Device With Good Quality vacuum convery for roast coffee

Working principle:

The vacuum feeding machine manufactured by our company is a newly
developed product which is the most advanced, ideal vacuum
conveying equipment for conveying powder material, granular
material, mixture of powder and granular material . It can not only
automatically convey a variety of materials to the mixing machine,
packing machine, injection molding machine, and grinder but also
directly deliver the mixed materials to the mixing machine such as
v-type mixing machine, two dimensions mixer and three dimensions
mixer. It can reduce the labor intensity and prevent the dust
overspill. Pharmaceutical factories and food factories can use it
to promote clean production and pass the GMP certification.

Specification

The vacuum feeder machine consists of vacuum pump(oil-free or water-free, ), vacuum hopper, filter(polyester coated, pe, 316L stainless, titanium),compressed air anti-blowing device,pneumatic feeding door device, automatic material level control device, stainless suction nozzle, conveying hose. The whole equipment is well designed and manufactured.

Product parameters

Item type	Model	Powder (kw)	Overall size (mm)	Diameter of Suction pipe (mm)
Electrical Vacuum Conveyor Systems	EZKS-1	1.5	φ220*820	38
	EZKS-2	2.2	φ220*820	38
	EZKS-3	3	φ290*950	51
	EZKS-4	5.5	φ420*1250	51
	EZKS-5	5.5	φ420*1350	51
	EZKS-6	7.5	φ420*1450	63
	EZKS-7	7.5	φ420*1650	76
Machine can be customized based on your need

Product Structure

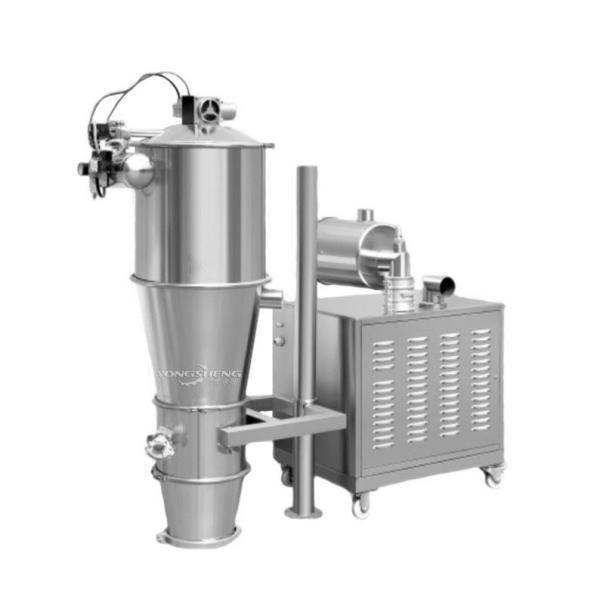

Feeding Device With Good Quality Vacuum Convery For Roast Coffee

Technical advantages:

1. Dust free transfer of bulk materials: Negative pressure inside the conveying system and two-stage filter
can create dust free condition
2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Small foot print: The conveying soft tube takes up little or no floor space within
your facility
4. Easy to install: The conveying system is connected by quick-open clamps which makes
the installation very easy
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead
corners for cleaning.
6. Low noise and power consumption: Noise in operation is less than 60 dB.

Pre-sale service.

24 hours service available(for emergency,please call us directly)

Generally,we provide solutions within 24 hours after getting all
necessary information

Quotation will be provide after solutions confirmed by client

Other necessary matters.

In-sale service.

Detailed drawing will be provided for confirmation

Arrange the production and suggest update the progress

Arrange the package,shipping mark and shipment

Provide necessary documents for customs clearance.

After-sales service.

24 hours service is available

All the products have at least 12 months warranty period(except
the quick-wear part)

All the spare parts will be provided at cost price

We can provide free technical guidance and training.
